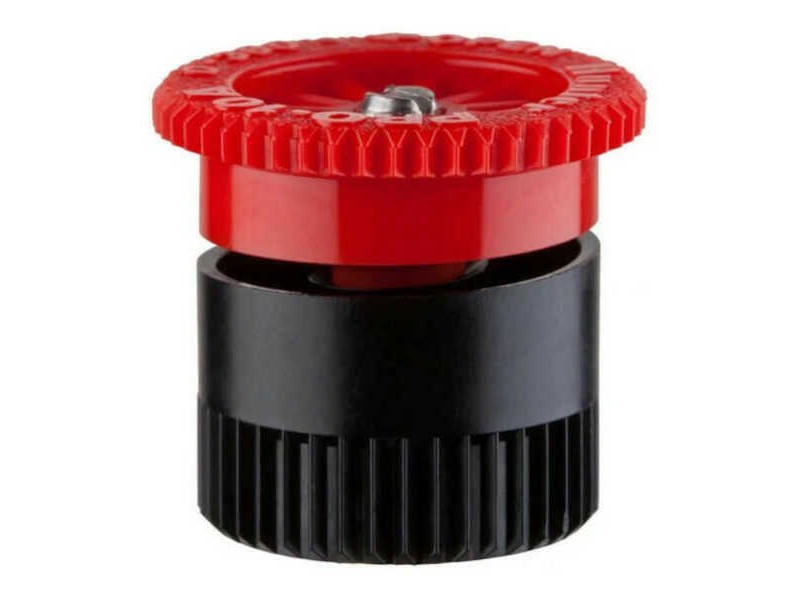

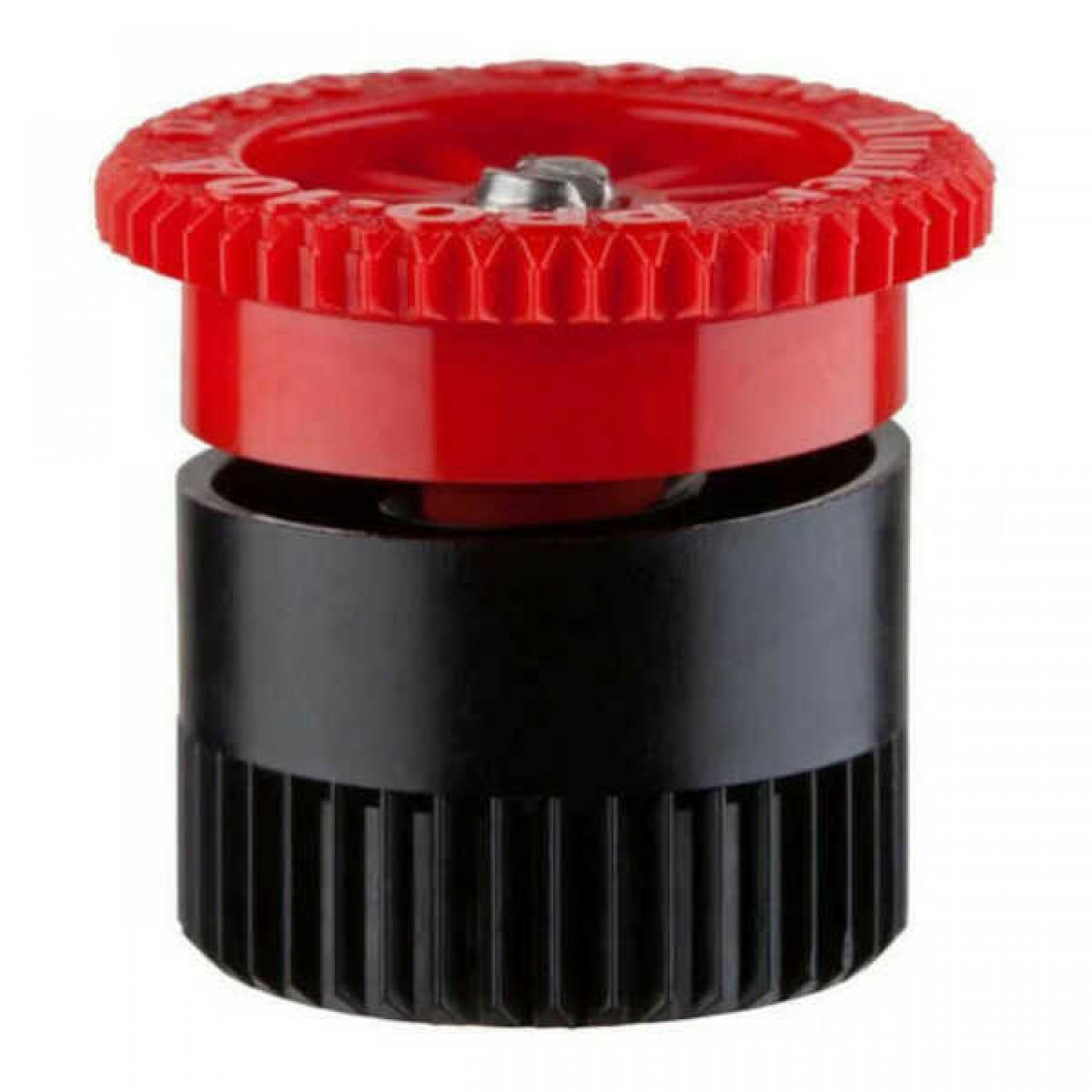

HUNTER PRO-10A Adjustable Nozzle 3m for PSU, PRO-S Sprinklers

HUNTER PRO-10A Adjustable Nozzle 3m

► For Large Quantities Get Quotes

HUNTER PRO-10A Adjustable Nozzle 3m for PSU, PRO-S Sprinklers | 0 - 360˚ Adjustable Arc. The HUNTER PRO Adjustable Arc Nozzles are designed to provide reliability and efficiency when installing and operating automatic irrigation systems. They emit water droplets larger than the average of similar nozzles on the market, have a wetting radius of 1.2 to 5.2 m and are very simple to set up. The HUNTER PRO are available in seven models and for immediate and easy identification, they are color coded based on the wetting radius. One of them is the HUNTER PRO-10A Adjustable Nozzle 3m red, which by providing the ability to adjust the arc of wetting from 0 to 360˚, can be adjusted in an extremely flexible way, ultimately bringing the irrigation coverage of almost any of corresponding garden and landscape irrigation project area requirements. The thread is female, and is compatible with sprinkler bodies from other companies. The product has a 2-year warranty.



► Suitable for HUNTER PS Ultra (PSU) and Pro-Spray® (PRO-S) Sprinklers

► All HUNTER products are fully supported with original spare parts (Guarantee of the Official Greek Dealer)

HUNTER PRO-10A Adjustable Nozzle 3m

Technical Data

ADJUSTABLE ARC NOZZLES HUNTER PRO
NOZZLE 10A RED • 3.0 m radius Adjustable from 0° to 360 Trajectory 15° Recommended Pressure 2.1 bar
Arc	Pressure		Radius	Flow		Precip mm/hr
	bar	kPa	m	m³/hr	l/min
45°	1.0	100	2.6	0.04	0.68	49	56
	1.5	150	2.8	0.05	0.80	49	57
	2.1	210	3.0	0.06	0.94	49	56
	2.5	250	3.2	0.06	1.06	48	56
	3.0	300	3.5	0.07	1.18	47	54
90°	1.0	100	2.6	0.08	1.35	49	56
	1.5	150	2.8	0.10	1.61	49	57
	2.1	210	3.0	0.11	1.89	49	56
	2.5	250	3.2	0.13	2.11	48	56
	3.0	300	3.5	0.14	2.37	47	54
120°	1.0	100	2.6	0.11	1.80	49	56
	1.5	150	2.8	0.13	2.14	49	57
	2.1	210	3.0	0.15	2.52	49	56
	2.5	250	3.2	0.17	2.82	48	56
	3.0	300	3.5	0.19	3.16	47	54
180°	1.0	100	2.6	0.16	2.71	49	56
	1.5	150	2.8	0.19	3.21	49	57
	2.1	210	3.0	0.23	3.78	49	56
	2.5	250	3.2	0.25	4.23	48	56
	3.0	300	3.5	0.28	4.73	47	54
240°	1.0	100	2.6	0.22	3.61	49	56
	1.5	150	2.8	0.26	4.28	49	57
	2.1	210	3.0	0.30	5.03	49	56
	2.5	250	3.2	0.34	5.64	48	56
	3.0	300	3.5	0.38	6.31	47	54
270°	1.0	100	2.6	0.24	4.06	49	56
	1.5	150	2.8	0.29	4.82	49	57
	2.1	210	3.0	0.34	5.66	49	56
	2.5	250	3.2	0.38	6.34	48	56
	3.0	300	3.5	0.43	7.10	47	54
360°	1.0	100	2.6	0.32	5.41	49	56
	1.5	150	2.8	0.39	6.43	49	57
	2.1	210	3.0	0.45	7.55	49	56
	2.5	250	3.2	0.51	8.45	48	56
	3.0	300	3.5	0.57	9.47	47	54

MANUAL

HUNTER PRO Specifications

The HUNTER PRO Nozzles
