Toro TS90 Sports Field Rotor Sprinkler (with Turf Cup) Radius 16.2-29m - Rotors

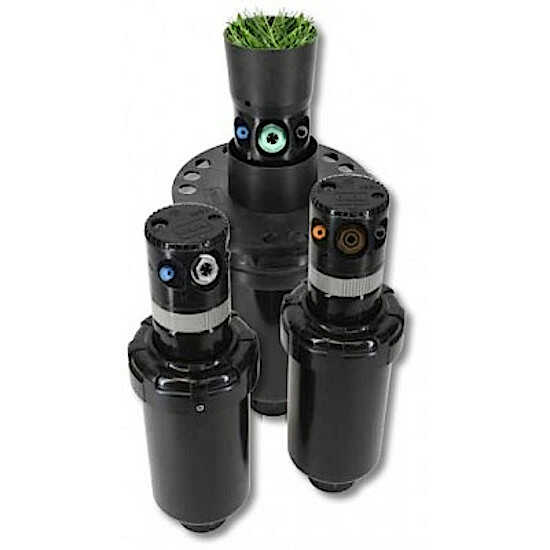

Toro TS90 Sports Field Rotor Sprinkler (with Turf Cup) Radius 16.2-29m

► For Large Quantities Get Quotes

Toro TS90 Sports Field Rotor Sprinkler (with Turf Cup) Radius 16.2-29m. The TS90 Series of professional underground sprinklers are manufactured by the world leader and pioneer in irrigation products, the American company TORO. It includes 2 types of models, one simple and the other with a special turf cap. Up to 3 nozzles in array are applied on the rotors, plus 1 more nozzle on the back side. The design of these sprinklers was carried out to meet the performance and durability requirements of wind-exposed (windward) private, municipal and public sports fields, extensive commercial areas as well as large garden areas. The Toro TS90 Sports Field Rotor Sprinkler with Turf Cup allows the adjustment of the angle of rotation and the angle of water ejection from the cap. They are of adjustable arcs of cycle segments and full wetting cycle eliminating the need to keep inventory of many different models as well as spare parts. All of the above features, along with the incorporation of registered technological innovations, ensure the continued reliability, consistent performance and exceptional versatility of the sprinkler.

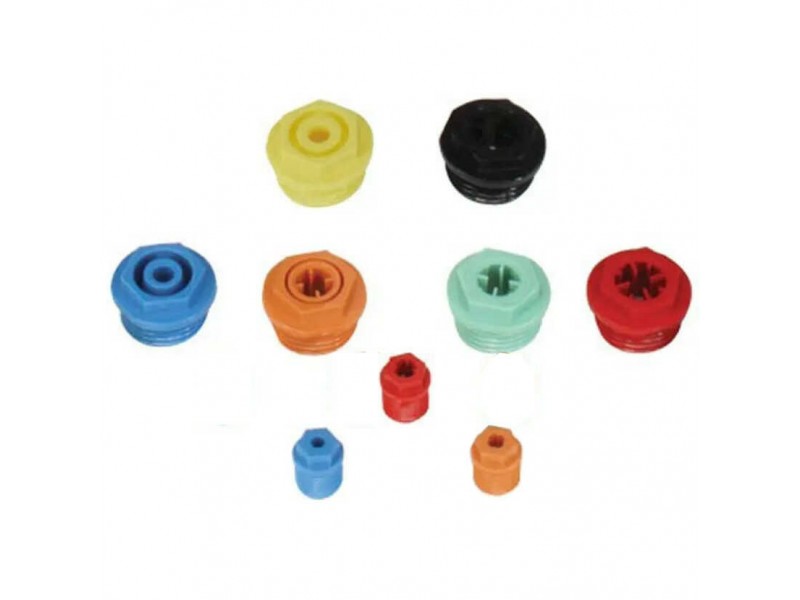

► The Toro TS90 Gear Driven Rotors are available with set of nozzles

► All TORO products are fully supported with original spare parts (Guarantee of the Official Greek Dealer)

General Characteristics of Toro TS90 Series



Trujectory Adjustment from 7° to 30°

Fine tunes nozzle spray height, helps provide true head-to-head coverage, and compensates for windy conditions.













Part And Full Circle In One

Offers convenience and reduces inventory requirements.

















Three Nozzle Configuration & Back Nozzle Capable

Provides better distribution uniformity, nozzle flexibility and system efficiency. Furthermore the Back Nozzle Capable is perfect for perimeter of sports fields. Provides the flexibility for fine-tuning any watering requirement.











Constant-Velocity Drive

Provides reliable rotation speed – from sprinkler to sprinkler.

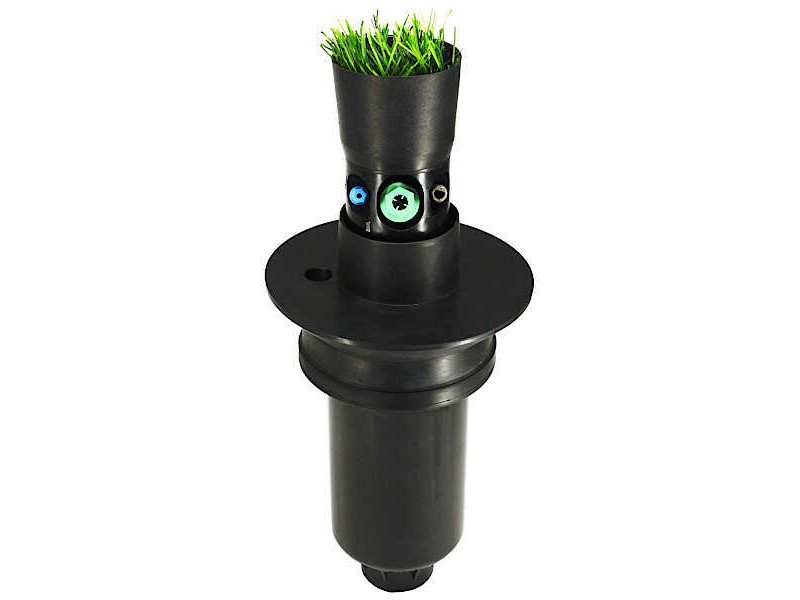

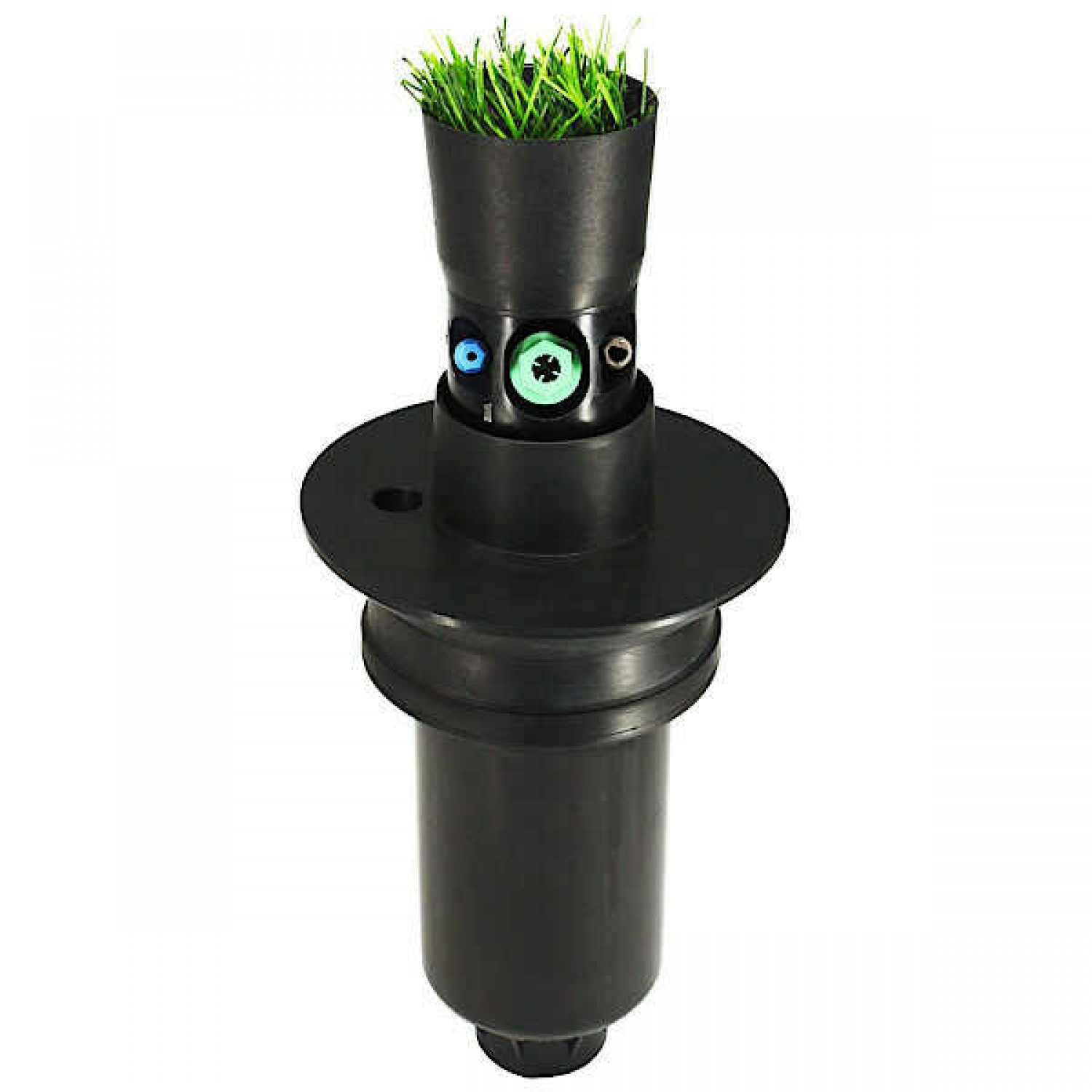

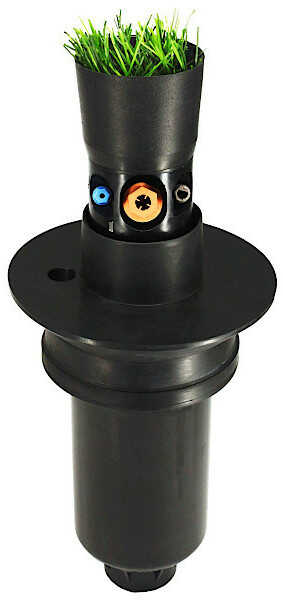

TurfCup™ For Sports Fields

The TurfCup version seamlessly integrates into either natural grass or artificial turf sports fields, enhancing player safety, surface playability and field aesthetics.

Toro TS90 Sports Field Rotor Sprinkler (with Turf Cup) Radius 16.2-29m

Presentation

The Toro TS90 Sports Field Rotor Sprinkler is particularly suitable for watering extremely extensive areas of turf, integrated into an automatic irrigation system. It is placed underground, with its head at the same height as the ground surface. It is made of particularly strong industrial plastic, and features a rubber protective cover, has a high resistance return spring, and a gravel filter that is removable from the top of the sprinkler, allowing for quick flushing of the system. Accepts full set of color-coded nozzles that screw directly into the front. It has a ratchet-type rising mechanism, which allows its position on the body to be adjusted without the need to disassemble the rotor and has a turf cup to protect the athletes but also to upgrade the aesthetics of the fields. The Toro TS90 Sports Field Rotor Sprinkler has a body height of 25.4 cm, a cap diameter of 55.9 mm, and a distance from the Pop Up to the nozzle of 83 mm. The trajectory of all nozzles is from 7˚ to 30˚, while the rotation speed of the sprinkler is estimated at 3 minutes ± 30 seconds.

Toro TS90 Gear Driven Rotor (with Turf Cup) Radius 16.2-29m

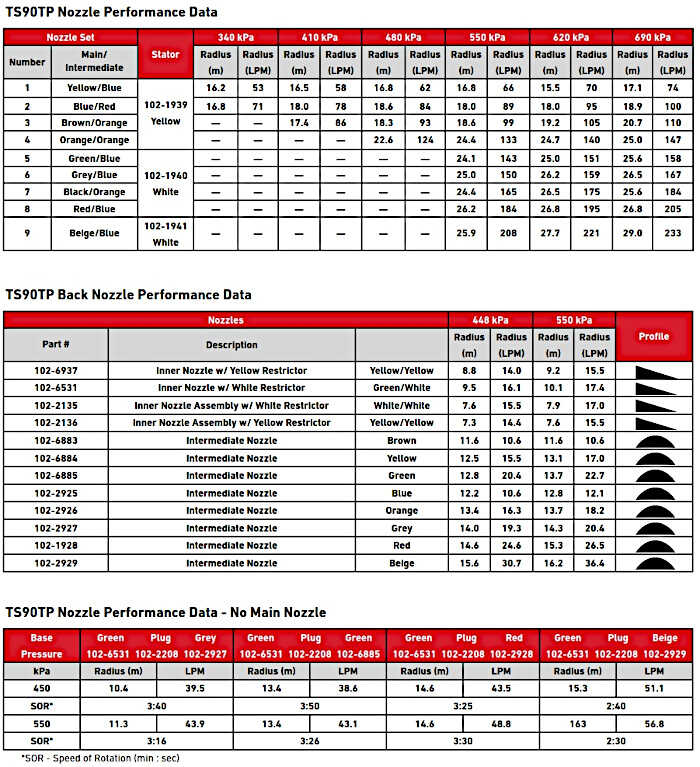

Technical Data

MANUAL

Toro TS90 User Guide
