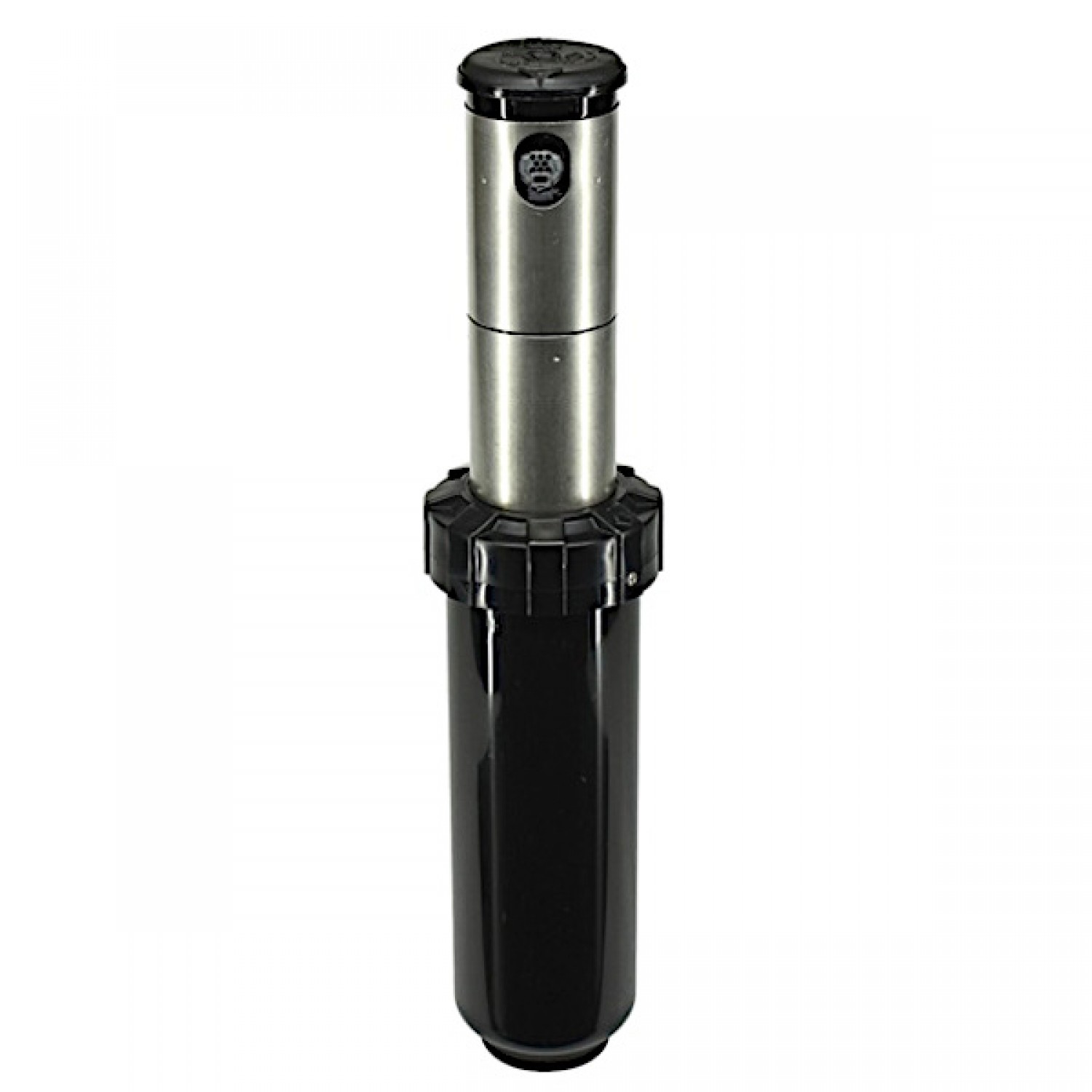

Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) Radius 11.6-16.2m - Rotors

Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) Radius 11.6-16.2m

► For Large Quantities Get Quotes

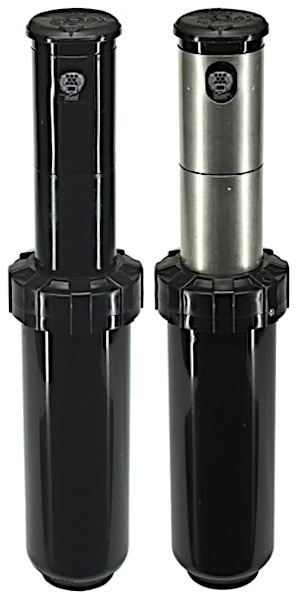

Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) Radius 11.6-16.2m - Rotors. The Τ7 Series of professional underground sprinklers are manufactured by the world leader and pioneer in irrigation products, the American company TORO. It includes 2 types of models, one with a highly reinforced industrial plastic riser and the other with a stainless steel riser, to which either high or low water flow nozzles can be applied. The design of these sprinklers was carried out to meet the performance and durability requirements of private, municipal and public sports fields, extensive commercial areas as well as large garden spaces. The Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) belongs to the type of low water flow irrigation models with inox riser that ensure continuous reliability, stable performance and excellent flexibility. It incorporates, among other things, the registered Smart Arc™ technology, which allows the arcs of the wetting cycle to be reset to the original settings if these are changed due to vandalism or user inexperience. For large and very large turf areas, the T7 is the right rotary sprinkler to cover their irrigation requirements.



► The Toro Τ7 Gear Driven Rotors accept 6 low-flow nozzles and 7 high-flow nozzles

► All TORO products are fully supported with original spare parts (Guarantee of the Official Greek Dealer)

General Characteristics of Toro Τ7 Series



Top Arc Indication

Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.















High Efficiency Nozzles

Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.













Vandal and Abuse Resistance

Smart Arc™ memory safely returns sprinkler to previously set arc if vandalized.















Design Solutions and Safety

Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.













Versatility

Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38'-53') applications, such as baseball infields.

Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) 11.6-16.2m

Presentation

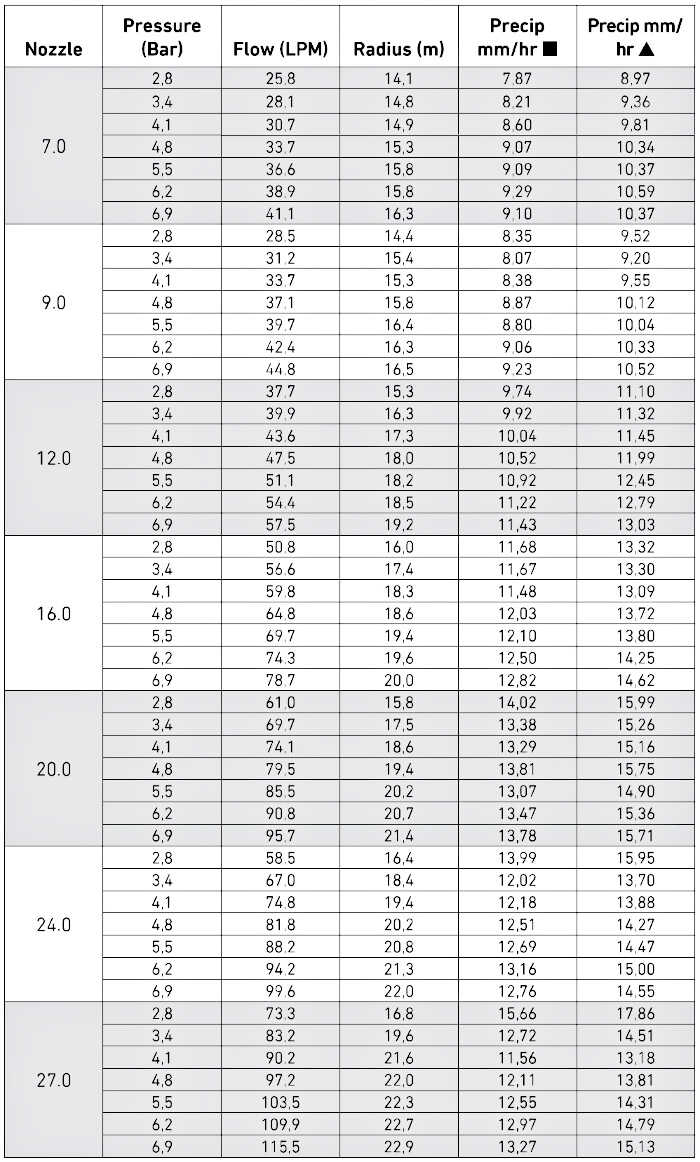

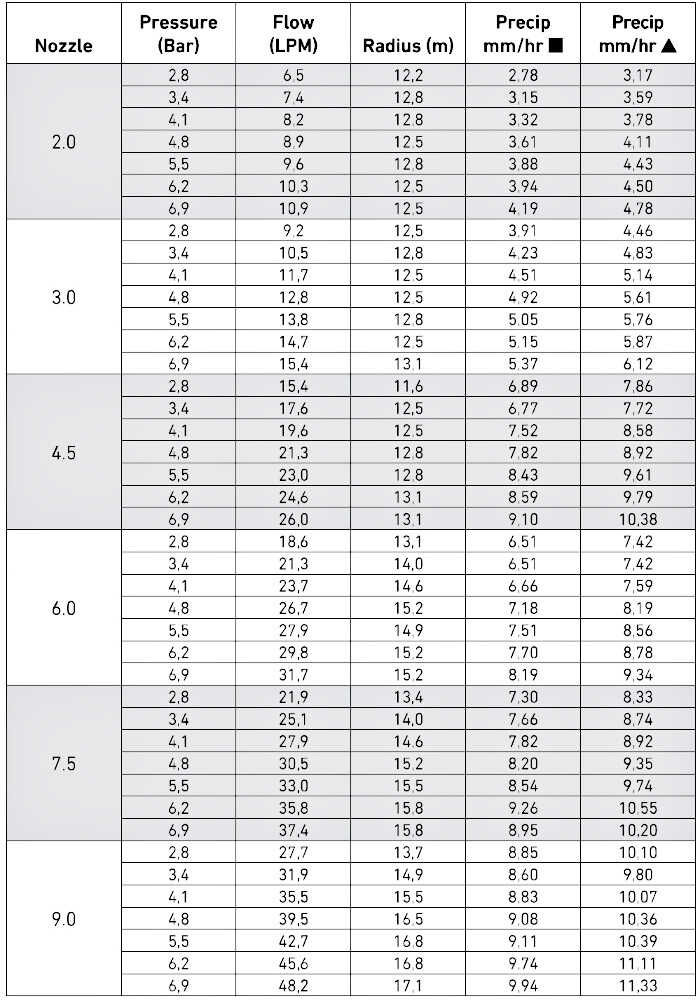

The Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) is particularly suitable for watering large and very large areas of turf, integrated into an automatic irrigation system. It is placed underground, with its head at the same height as the ground surface. Its body is made of particularly strong industrial plastic, the riser of stainless steel, and has a high resistance return spring. Accepts 7 high-flow nozzles (Nr 7, 9, 12, 16, 20, 24 and 27) with a wetting radius from 14 to 22 m and 6 low-flow nozzles (Nr 2, 3, 4.5, 6, 7.5 and 9) with a wetting radius of 11.6 to 17.1 m. The Toro T7 ΡSS-52L Sports Field Rotor Sprinkler (with Stainless Steel Riser) has a body height of 22.4 cm, a cap diameter of 56 mm, and a distance from the Pop Up to the nozzle of 127 mm. The trajectory of all nozzles is 25˚.

Toro T7 ΡSS-52L Stainless Steel Gear Driven Rotor Radius 11.6-16.2m

Technical Data

MANUAL

Toro Τ7 User Guide

Toro® T7: Adjustment the Arc and Radius
